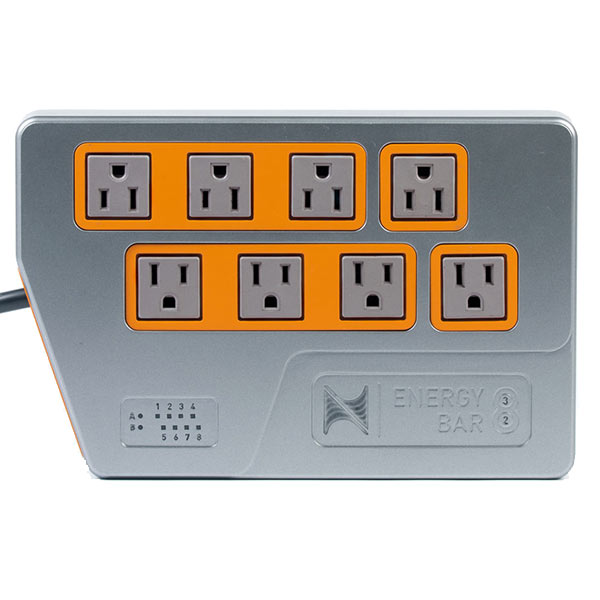

The ultimate power control hub for Apex WiFi Aquarium Controller System. Neptune Systems EnergyBar 832 is redesigned from the ground up featuring eight 120V AC outlets to power and place any electrical aquarium equipment under Apex control with greater efficiency. Three 1LINK 24VDC Smart Outlets and two switchable 24VDC outlets are supported by a 100W 24VDC internal power supply to streamline connection and eliminate the need for additional power supply bricks. Forward and backward compatible design allows you to employ existing Apex accessories and modules. Each individual outlet has power monitoring and LED indicators.

Energy Bar 832 Specifications

• (13) Total power connections for your aquarium devices
• (8) 120V AC Outlets all switched with relays rated for millions of cycles
• (3) 1LINK 24VDC Smart outlets for devices such as WAV, DOS, etc.
• (2) Switchable 24VDC outlets for accessories such as small pumps, solenoids, fans, etc.

Dimensions

• Energy Bar 832 - 10" L x 6.5" H x 2.25" W

Energy Bar 832 (EB831) - The Ultimate Power Control Hub
This Energy Bar 832 was redesigned from the ground up. Not only does it have eight 120V AC outlets, but it includes an internal 100W 24VDC power supply as well. That power supply feeds three built-in 1LINK ports as well as two 24VDC accessory ports. Each individual outlet has power monitoring and there are individual LED indicators for each outlet.

Energy Bar 832 Specifications

• (13) Total power connections for your aquarium devices
• (8) 120V AC Outlets all switched with relays rated for millions of cycles
• (3) 1LINK 24VDC Smart outlets for devices such as WAV, DOS, etc.
• (2) Switchable 24VDC outlets for accessories such as small pumps, solenoids, fans, etc.

Power Monitoring
For years Neptune has been asked to do the power monitoring of the individual devices connected to each outlet – but it just wasn't possible without breaking your bank. Now it's here and with comes tons of benefits.

For many, the cost of the electricity to run a successful aquarium is a major concern in their household. Even for those where electricity is cheap, Neptune believes most aquarists care a great deal about their energy consumption and its effect on the environment. Ironically, our energy usage could be directly connected to excess greenhouse gasses, the warming of the oceans, and the bleaching of the corals!

However, armed with the right information Neptune believes aquarists will not only be able to make operating and purchase decisions that will save them hundreds of dollars a year, but they will also be able to reduce their carbon footprint.

Built-In 1LINK and 24VDC Ports
This Energy Bar has a built-in 100W, 24VDC power supply that can control up to three Neptune Systems 1LINK products like the WAV and DOS. It also includes two switchable 24V DC on/off outlets that are compatible with any 24V device under 30W and Neptune Systems 24V accessories like our Practical Multi-purpose Utility Pump (PMUP).

Individual Outlet Indicator LED
Each Energy Bar AC outlet, as well as the two 24VDC accessory ports, has their own status LED. This LED tells you when that outlet is energized. The LED will also blink rapidly if a device is plugged in that exceeds the current capability for that outlet.

Alarms and Decisions Based on Power
Since the Apex is receiving continual power usage data from the Energy Bar 832, it can be configured to send you notifications when a device is not using power as it should. An example would be a return pump showing no power consumption when the outlet is on or a skimmer whose power consumption will show differently when its airline is clogged when compared to normal operation. These high and low limits are completed customizable by individual outlet. You can even use this power data to control other devices.

All Outlets Relay Switched
Times have changed and it is fairly uncommon now for aquariums to have AC devices that must be cycled on and off continuously. This means that Neptune could now switch all AC outlets to relay switching since there is no need to have soft start and there is no concern for the noise of the relay.

New Mounting System for Energy Bar 832
The Energy Bar 832 has an innovative attachment system that makes it easy to mount them up and also give convenient access to all the connections. The Energy Bar 832 has a mounting bracket you screw to the wall with just three screws and then the Energy Bar slides down onto the bracket.

About Neptune Systems
Less Hassle, More Success
Everyone knows aquariums can be a hassle, especially saltwater aquariums. At Neptune Systems their key goal is to give you products and customer service that reduces your hassle, makes it easier for your to have a successful experience, and gives you more time to soak in all the beauty and wonder that comes with owning an aquarium.
